Barcode Printer ng Thermal Transfer
● Ang memory na may malaking kapangyarihan ay suportahan sa pagdownload at print ng iba't ibang vektor na fonts;
● Suportahan ang 100m maliit na core ribbon;
● Maaaring maayos ang maraming interfaces sa iba't ibang mga aplikasyon;
● Opsyonal na BT module para sa direktang pagpapaprint ng mobile phone;
● Kompatible sa ZPL/EPL/TSPL;
● Ang kompakto na struktura, madaling ilagay;
Mga detalye
Mga Ispecifikasyon
Mga Accessories
Video Guide
Download
| MUDEL ng PRINTER | iT888 | |
|---|---|---|
| Resolusyon | 203dpi | |
| Mga paraan ng pagprint | Thermal Transfer | |
| Max. na bilis ng print | 6ips | |
| Ang pinakamalaking lawak ng print | 4.25"(108mm) | |
| Magandang haba ng print | 51"(1296mm) | |
| Physical dimension(W x H x D) | 12.12"(308mm)x9.84"(250mm)x7.09"(180 mm) | |
| Weight | 5.27lbs (2.9kg) | |
| Processor | 32-bit RISC CPU | |
| Memory | 16 MB Flash /32 MB RAM | |
| Interface | Standard: USB-B and Ethernet 10/100Base T,RS-232 Serial portOptional: Bluetooth 5.2/BLE(Factory option) | |
| Stock label | External universal switching power supplyInput: AC 100~240V, 2.0A, 50~60 HzOutput: DC 24V 2A, 48W | |
| User interface | 1operation button( feed )1 LED with 3 colors | |
| Mga Sensor | Gap transmissive sensorBlack mark reflective sensor (position adjustable)Head open sensor | |
| Panloob na mga fonta | 8 resident expandable ZPL II bitmap fontsSimplified Chinese, Traditional ChineseDownloadable objects include graphics, scalable and bitmap fonts, label templates and formatsIBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software controlCode Page 1250, 1251, 1252, 1253, 1254, 1255, 1256 Support with font 0 | |
| Mga Grapikong Format | PCX,BMP | |
| Bar code | 1D: Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128,UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, GS1 DataBar2D:PDF417, Maxicode, DataMatrix, QR Code, Aztec | |
| Pagputol ng mga fonta at barcode | 0, 90, 180, 270 degree | |
| wika ng printer | ZPL-II, TSPL, DPL, EPL2 | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch | |
| Media handling | Standard: Continuous, Tear-Off | |
| Width of the media | Min 1"(25.4mm) / Max 4.64"(118mm) | |
| Makapal ng media | 0.002"(0.06mm) to 0.010"(0.250mm) | |
| Media core diameter | 0.5"(12.7mm)/ 1"(25.4mm) | |
| Media max. roll diameter | 5.0"(127mm) | |
| Media length | Min.: 0.24"(10mm)Max.: 51"(1296mm) | |
| query-sort | Wax, Wax/Resin, Resi | |
| Pangalan ng rebon | 328.1 ft(100m) | |
| Ang diameter ng Ribbon core | 0.5"(12.5mm) | |
| keyboard label | Min 1.18"(30mm) / Max 4.33"(110mm) | |
| kondisyon ng kapaligiran | Operating Temperature: 41° to 104°F (5° to 40°C) (limitations based on selected media) / Operating Humidity: 25 to 85% RH Non-CondensingStorage Temperature: -20° to 122° F (-20° to 50° C) / Storage Humidity: Non-Condensing | |
| Siguradong Certificate | CCC, FCC, CE, CB, Energy Star | |
| Pagtatanghal ng kapaligiran | RoHS | |
| Mga Opsyon | Bluetooth 5.2/LE(Factory option) |
BLUETOOTH

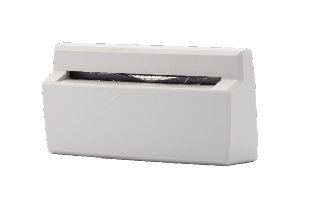

Guillotine Cutter Module
